主要技術參數/Technical Data

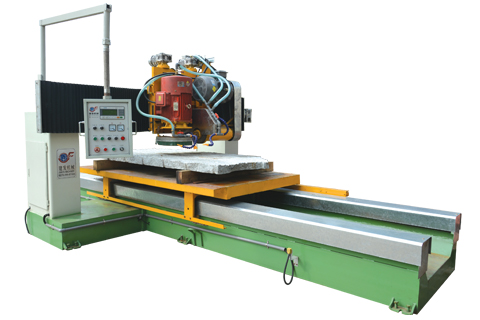

| 名稱 | appellation | LMXMJ-1800PC |
| 最大加工尺寸 | Max processing size | 3100x1800x240mm |
| 設備外形尺寸 | dimension of external form | 7000x2800x2180mm |
| 主鋸片最大直徑 | The maximum diameter of main saw blade | 500mm |
| 分鋸片最大直徑 | Saw blade diameter divided | 400mm |
| 主切電機功率 | The main cutting motor power | 15-18.5kw |
| 分切電機功率 | The cutting motor power | 11-15kw |
| 主切升降電機功率 | Power cut main lifting motor | 0.55kw |
| 分切升降電機功率 | The cutting lifting motor power | 0.55kw |
| 分切電機功率 | Slice motor power | 1.5kw |
| 臺車電機功率 | Trolley motor power | 1.5kw |
| 總重量 | weight | ≈4500kg |
Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
