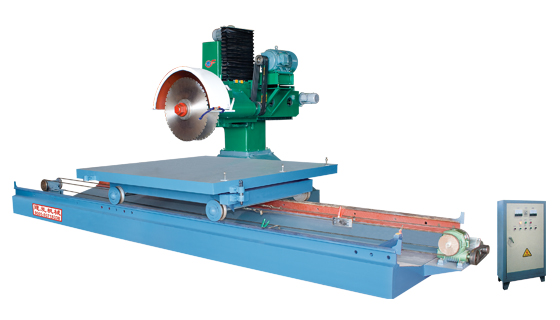

名稱 | appellation | LTZQ-4500 |
加工荒料尺寸 | size of processing blocks | 4500x1800x480mm |
設備外形尺寸 | dimension of external form | 6950x2800x2600mm |
鋸片直徑 | blade diameter | 1200mm |
主軸電機 | axes motor | 18.5kw |
升降電機 | lifting motor | 2.2kw |
橫臂電機 | gross beam motor | 1.5kw |
臺車電機 | sawing machine motor | 1.1kw |
總重量 | weight | ≈5000kg |
注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。
Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
